Email this article Left bundle branch block in coronary artery disease: looking for new electrocardiographic markers
- Authors: Fedulaev Y.N.1, Makarova I.V.1, Grigorieva A.V.1, Kapitonova D.R.1, Khairetdinova G.A.1
-
Affiliations:
- N. I. Pirogov Russian National Research Medical University
- Section: Original study articles
- Submitted: 28.10.2024
- Accepted: 19.03.2025
- Published: 23.03.2025
- URL: https://cardiosomatics.ru/2221-7185/article/view/639933
- DOI: https://doi.org/10.17816/CS639933
- ID: 639933
Cite item
Full Text
Abstract
Complete left bundle branch block (LBBB) is an example of uninformative electrocardiogram (ECG) in context of myocardial ischemia. QRS-duration is an ECG-marker of ventricular dissynchrony in chronic heart failure (CHF) progression. QRS-fragmentation (fQRS) is a less common ECG parameter of local myocardial fibrosis, predictor of negative prognosis in coronary artery disease (CAD) and narrow QRS, associated with cardiovascular events, increased hospitalization and mortality. Few studies concern fQRS evaluation in wide QRS.
AIM: To perform a comparative study of clinical, instrumental and epidemiological characteristics in CAD patients with LBBB according to fQRS presence.

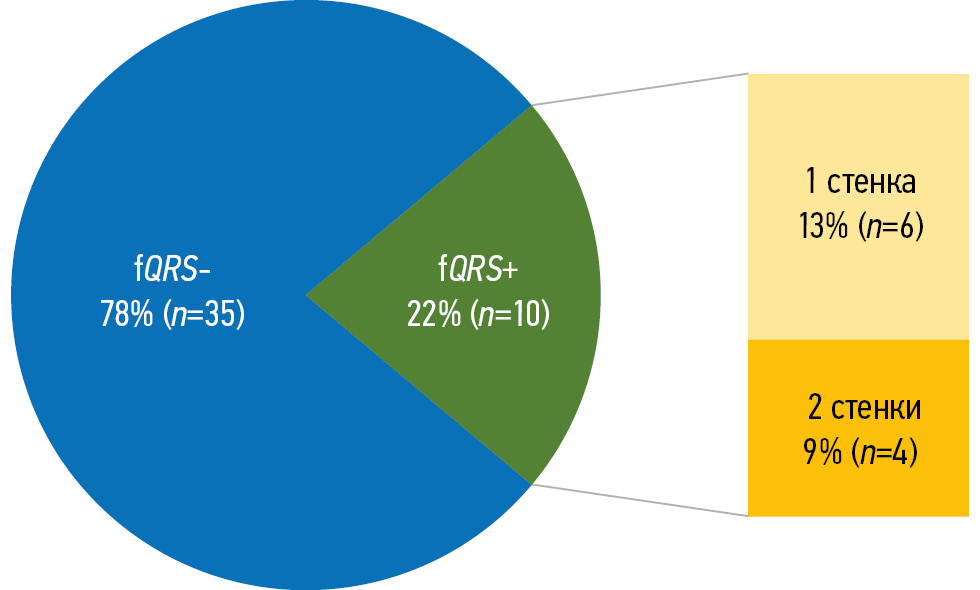

MATERIALS AND METHODS: 45 in-patients aged 76±8 years were included in the study. 10 patients had an evidence of fQRS (main group), 35 were without fQRS (control group). At the first stage (2018-2019) some clinical, electrocardiographic and echocardiographic (global and regional contractility of left ventricle) data were collected. Second stage (2024) included detailed analysis of the unified medical informational system documentation.

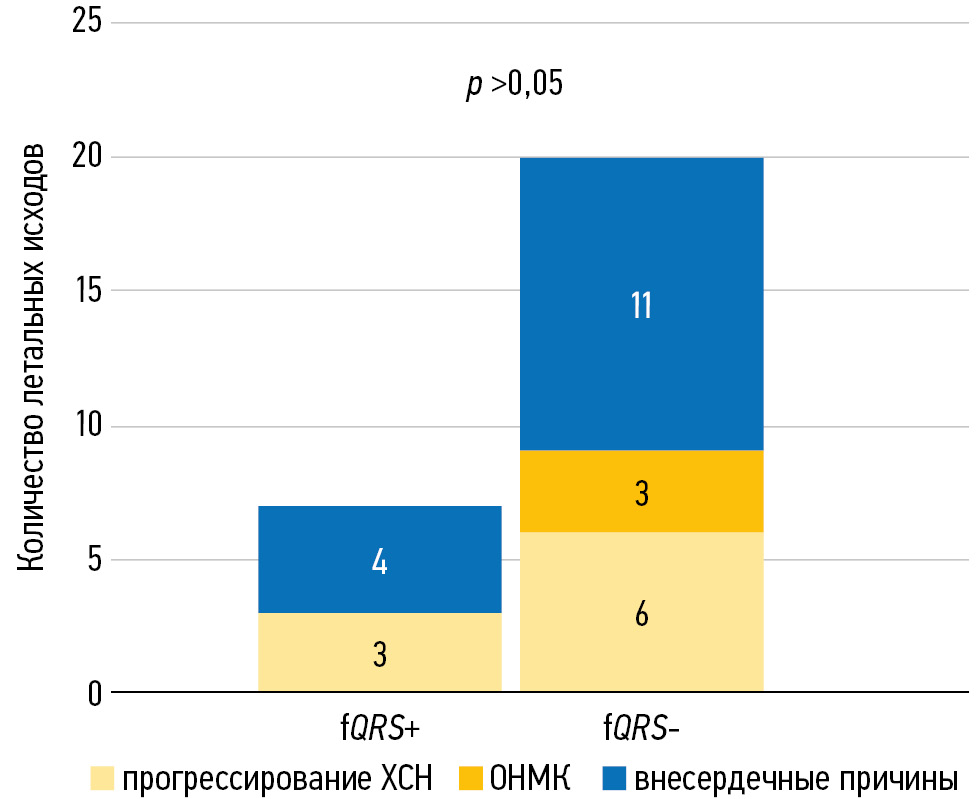

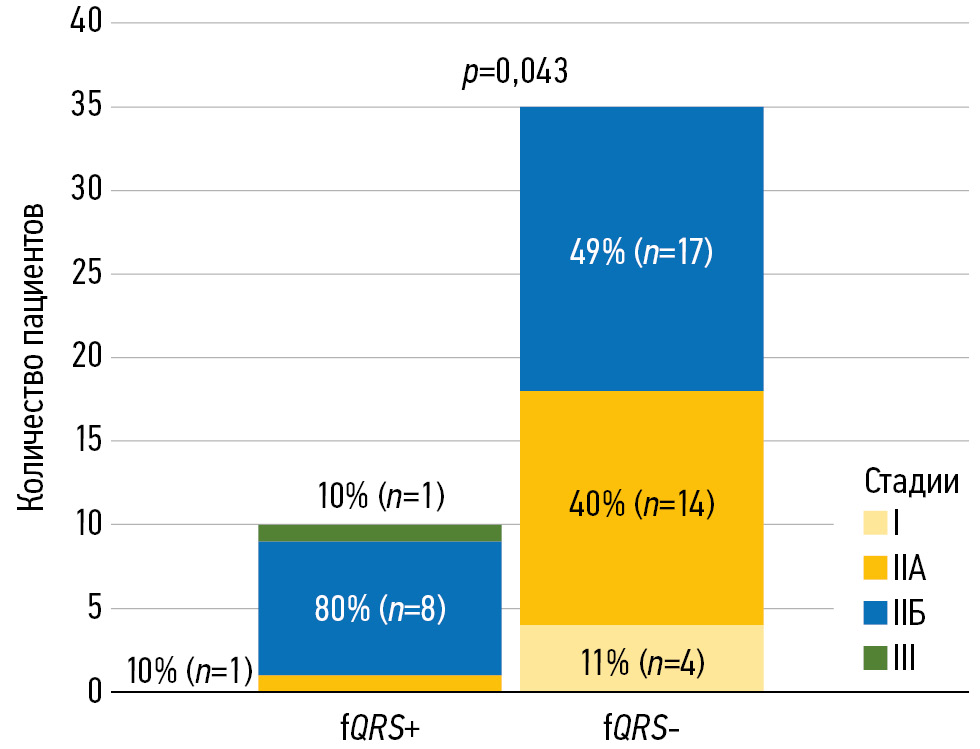

RESULTS: QTc interval (463 vs. 433 ms, p=0.028) and QRS-duration (160 vs. 120 ms, p=0.009) were significantly higher in the main group. A trend towards a lower left ventricular ejection fraction (EF) was seen in the main group (34.2±14.4% vs. 42.8±13.9% in the control, p=0,063). The groups differed in terms of CHF severity (p=0.043), grade 2B was observed in 80% of the main group participants and in 49% of the control. The median of fragmented ECG leads was 4.5. Hospitalization rate trends to be higher in the main group compared to the control (p=0.061). A total of 27 lethal outcomes were documented, most of cases were non-cardiac. 30% of the main group patients and 17.1% of the control died from progressive CHF. Causes of lethal outcomes did not significantly differ into groups.
CONCLUSION: FQRS registration is associated with still prolongation of QRS-complex and QTc interval in LBBB, trend to left ventricular EF reduction, increased hospitalization rate and CHF stage progression. It can be appreciated as a part of new prognostic model in CAD patients with deformed QRS-complexes.
Full Text
.
About the authors
Yuri N. Fedulaev
N. I. Pirogov Russian National Research Medical University
Email: kuwert@yandex.ru
ORCID iD: 0000-0003-4040-2971
SPIN-code: 2764-7250
Scopus Author ID: 6503940014
ResearcherId: K-7917-2018
Professor, MD, Dr. Sci. (Med.), Head of Department of Faculty Therapy IMC
Russian Federation, 117997, Russian Federation, Moscow, Ostrovityanova St., 1.Irina V. Makarova
N. I. Pirogov Russian National Research Medical University
Author for correspondence.
Email: irina-makarova93@mail.ru
ORCID iD: 0000-0001-5127-1300
SPIN-code: 3525-1775
Scopus Author ID: 57211044069
ResearcherId: ABE-1969-2020
MD, Cand. Sci. (Med.), Assistant Professor of Department of Faculty Therapy IMC
Russian Federation, 117997, Russian Federation, Moscow, Ostrovityanova St., 1.Alisa V. Grigorieva
N. I. Pirogov Russian National Research Medical University
Email: alic.19101999@mail.ru
ORCID iD: 0009-0009-5010-0687
MD, 2nd year resident of Department of Faculty Therapy IMC
Russian Federation, 117997, Russian Federation, Moscow, Ostrovityanova St., 1.Dzhamilya R. Kapitonova
N. I. Pirogov Russian National Research Medical University
Email: jam.kapiton@gmail.com
ORCID iD: 0009-0006-7519-0701
SPIN-code: 6806-0062
MD, 2nd year resident of Department of Faculty Therapy IMC
Russian Federation, 117997, Russian Federation, Moscow, Ostrovityanova St., 1.Gulfiya A. Khairetdinova
N. I. Pirogov Russian National Research Medical University
Email: sportcardio@mail.ru
ORCID iD: 0000-0003-4908-3591
SPIN-code: 5620-6080
Scopus Author ID: 37004797600
MD, Cand. Sci. (Med.), Assistant Professor of Department of Faculty Therapy IMC
Russian Federation, 117997, Russian Federation, Moscow, Ostrovityanova St., 1.References
- Byrne RA, Rossello X, Coughlan JJ, et al. 2023 ESC Guidelines for the management of acute coronary syndromes. Eur Heart J. 2023; 44(38):3720-3826. doi: 10.1093/eurheartj/ehad191
- Nikus K, Birnbaum Y, Fiol-Sala M, et al. Conduction Disorders in the Setting of Acute STEMI. Curr Cardiol Rev. 2021;17(1):41-49. doi: 10.2174/1573403x16666200702121937
- McDonagh TA, Metra M, Adamo M, et al. 2021 ESC Guidelines for the diagnosis and treatment of acute and chronic heart failure: Developed by the Task Force for the diagnosis and treatment of acute and chronic heart failure of the European Society of Cardiology (ESC). With the special contribution of the Heart Failure Association (HFA) of the ESC. Eur J Heart Fail. 2022;24(1):4-131. doi: 10.1002/ejhf.2333
- Boсkeria LA, Stupakov SI. Znachenie dlitel'nosti QRS i polnoj blokady levoj nozhki puchka Gisa v razvitii i techenii zastojnoj serdechnoj nedostatochnosti. Annaly aritmologii. 2012;9(1):20-24
- Das MK, Khan B, Jacob S, et al. Significance of a fragmented QRS complex versus a Q wave in patients with coronary artery disease. Circulation. 2006;113(21):2495-501. doi: 10.1161/CIRCULATIONAHA.105.595892
- Das MK, Michael MA, Suradi H, et al. Usefulness of fragmented QRS on a 12-lead electrocardiogram in acute coronary syndrome for predicting mortality. Am J Cardiol. 2009;104(12):1631-1637. doi: 10.1016/j.amjcard.2009.07.046
- Das MK, Saha C, El Masry H, et al. Fragmented QRS on a 12-lead ECG: A predictor of mortality and cardiac events in patients with coronary artery disease. Heart Rhythm. 2007;4(11):1385-1392. doi: 10.1016/j.hrthm.2007.06.024
- Torigoe K, Tamura A, Kawano Y, et al. The number of leads with fragmented QRS is independently associated with cardiac death or hospitalization for heart failure in patients with prior myocardial infarction. J Cardiol. 2012;59(1):36–41. doi: 10.1016/j.jjcc.2011.09.003
- Vandenberk B, Robyns T, Goovaerts G, et al. Inferior and anterior QRS fragmentation have different prognostic value in patients who received an implantable defibrillator in primary prevention of sudden cardiac death. Int J Cardiol. 2017;243:223-228. doi: 10.1016/j.ijcard.2017.02.131
- Das MK, Suradi H, Maskoun W, et al. Fragmented wide QRS on a 12-lead ECG: a sign of myocardial scar and poor prognosis. Circ Arrhythm Electrophysiol. 2008;1(4):258-268. doi: 10.1161/circep.107.763284
- Del-Carpio Munoz F, Noseworthy PA, Gharacholou SM, et al. Fragmentation of QRS complex during ventricular pacing is associated with ventricular arrhythmic events in patients with left ventricular dysfunction. J Cardiovasc Electrophysiol. 2018;29(9):1248-1256. doi: 10.1111/jce.13656
- Peters S. QRS fragmentation in patients with arrhythmogenic right ventricular cardiomyopathy and complete right bundle branch block: a risk stratification. Eur Heart J Acute Cardiovasc Care. 2012;1(3):236-239. doi: 10.1177/2048872612453922
- Parmon EV, Gordeeva MS, Kurilenko TA, Berngardt ER. QRS complex fragmentation — an important marker of abnormal depolarization. Russian Journal of Cardiology. 2017;148(8):90-95. doi: 10.15829/1560-4071-2017-8-90-95
- Bogossian H, Frommeyer G, Ninios I, et al. New formula for evaluation of the QT interval in patients with left bundle branch block. Heart Rhythm. 2014;11(12):2273-2277. doi: 10.1016/j.hrthm.2014.08.026
- Sagie A, Larson MG, Goldberg RJ, et al. An improved method for adjusting the QT interval for heart rate (the Framingham Heart Study). Am J Cardiol. 1992;70(7):797-801. doi: 10.1016/0002-9149(92)90562-d
- Gordeeva MS, Parmon EV, Karlina VA, Ryzhkova DV. Fragmented QRS complex as a marker of myocardial fibrosis in patients with coronary artery disease. Science and Innovations in Medicine. 2022;7(2):95-102. doi: 10.35693/2500-1388-2022-7-2-95-102
- Sadeghi R, Dabbagh VR, Tayyebi M, et al. Diagnostic value of fragmented QRS complex in myocardial scar detection: systematic review and meta-analysis of the literature. Kardiol Pol. 2016;74(4):331-337. doi: 10.5603/KP.a2015.0193 Hookana I, Holmström L, Eskuri MAE, et al. Characteristics of women with ischemic sudden cardiac death. Ann Med. 2023;55(2):2258911. doi: 10.1080/07853890.2023.2258911
- Gordeeva MS, Serdiukova IA, Krasichkov AS, Parmon EV. Electrocardiographic signs of impaired depolarization (fragmented QRS, early ventricular repolarization, etc.) as markers of left ventricular systolic dysfunction. Russian Journal of Cardiology. 2022;27(7):5113. doi: 10.15829/1560-4071-2022-5113
- Ikitimur B, Barman HA, Dogan O, et al. Prognostic significance of addition of electrocardiographic findings to the MAGGIC heart failure risk score. J Electrocardiol. 2022;72:102-108. doi: 10.1016/j.jelectrocard.2022.03.003.
